Module transmission NanoSPY LINK 3 4

Transmission module of data measurement to the JRI secure cloud

The Nano SPY LINK module detects and communicates with all nearby Nano SPY sensors. Data are collected and transmitted to the JRI secure Cloud via a WiFi connection or by Ethernet network.

The devices is equipped with the BLE communication can communicate with a tablet.

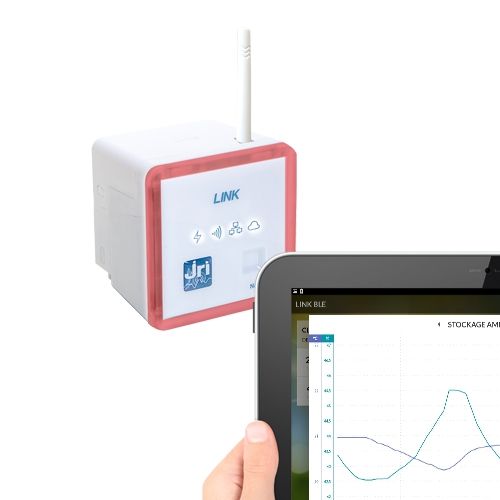

This function allows to view the status of all your monitored chambers on a screen and monitor your equipment even if Internet is down.









ModuletransmissionNanoSPYLINKbandeaux
ModuletransmissionNanoSPYLINKEthernet
ModuletransmissionNanoSPYLINKdos
ModuletransmissionNanoSPYLINKcote



BENEFITS

  • Operating and warning light indicators
  • Integrated buzzer
  • Automatic detection and communication with Nano SPY sensors
  • Fixing eyelets on each side and on the back
  • Ethernet or wifi devices





Specifications

  • Interface : Operating and warning light indicator, touch sensitive button On/Off, integrated buzzer
  • Transmission frequency with Nano SPY : 2,4 GHz Frequency
  • Communication range : Up to 40m depending on buildings environment
  • Power supply : Power outlet or POE
  • Dimensions and weight : 78x78x63 mm - 200g (without adaptor)
  • Protection index : IP20 – indoor only
  • Compliance : CE, EN 301 489 / EN 300 220 / EN 61010 / EN 301 511
  • Part nr : 11711 Ethernet VDC - 11713 Ethernet VDC / BLE - 11690 Ethernet POE - 11691 Ethernet POE / BLE - 11715 WiFi - 11717 WiFi /BLE
