Number of sensors: High concentration of sensors up to 30 meters, Few sensors, Many sensors spread over an extended area
Parameters to be monitored: Temperature or temperature and humidity only, Temperature, humidity and other parameters
Area covered by the Lorawan Network: Yes
Real-time data management: Real-time data monitoring and alert receiving, Consultation of data and exceeding thresholds when goods are received without any action
Type of transport: Global, National
Sensor location: Locate the area where the sensor is

 LoRa SPY T3 face

The long-range wireless data logger LoRa® SPY T3 measures and records ultra-low temperature thanks to an external probe

Designed to monitor low temperature in ultra-low freezers and LN2 tanks, the LoRa® SPY T3 can be placed on the outside thanks to its magnet allowing to visualize data measurement.

Data are sent to the JRI secure Cloud by LoRaWAN™ network of the telecom operators members of the LoRa Alliance™, or by a Micro Gateway private network data transmission module.

In case of threshold excursions, real-time alerts are sent.

Temperature measurements are managed on the JRI-MySirius temperature monitoring web application

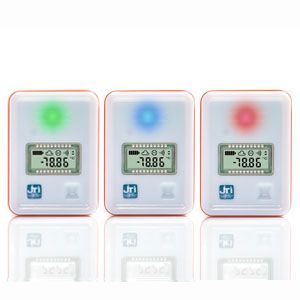

WirelessLowTemperatureSensorsLoRaSPYT3lights

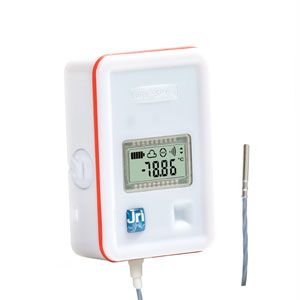

WirelessLowTemperatureSensorsLoRaSPYT33-4-face

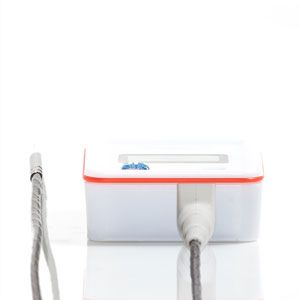

WirelessLowTemperatureSensorsLoRaSPYT3flat

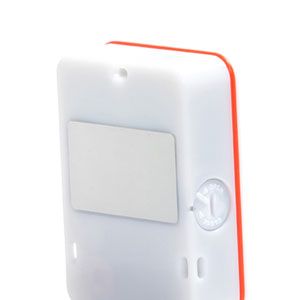

WirelessLowTemperatureSensorsLoRaSPYT3back

BENEFITS

  • Long-range LoRaWAN connectivity
  • Easy to use : LoRa SPY T3 is ready to use and has operating and alarms lights
  • LCD display
  • Excellent measurement accuracy
  • External probe
  • Fixing eyelets and integrated magnets
  • Replaceable battery





Specifications

  • Measurement range : -200°C to 0°C
  • Accuracy : ±0.2°C from -20°C to 0°C, ±0.5°C out of this range
  • Communication frequency : 868/915 MHz
  • Memory : 10 000 data points
  • Radio range : Up to 16 km open field range
  • Sensors : External Class A PT100 - Ø2,9mm Teflon® cable with 50cm or 6m lenght
  • Interface : Status LED lights, On/Off touch sensitive button, LCD display
  • Dimensions : 87 x 64 x 25 mm
  • Weight : 100 g
  • Power supply : Replaceable Lithium 3,6v battery
  • Battery lifetime : 2 years
  • Identification ring : Red
  • Part nrs :
    • 868 MHz : 11808 EU LoRa® SPY T3 50 cm - 11806 2E LoRa® SPY T3 6m
    • 868 MHz without battery : 11808 EX LoRa® SPY T3 50 cm - 11806 2X LoRa® SPY T3 6m
    • 915MHz without battery : 12275 EX LoRa® SPY T3 50 cm - 12273 EX LoRa® SPY T3 6m
