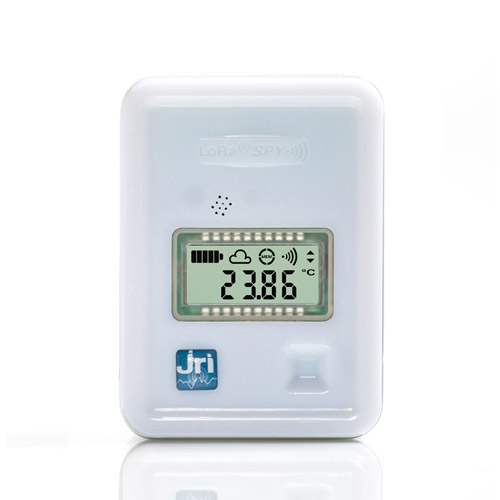

Wireless Temperature Humidity Sensor LoRaSPYTH



The long-range wireless data logger LoRa® SPY TH measures and records temperature and hygrometry


Data are sent to the JRI secure Cloud by the LoRaWAN™ network of the telecom operators members of the LoRa Alliance™, or by a local network.

In case of threshold excursions, real-time alerts are sent.

Discreet, the LoRa® SPY TH1 is particularly adapted for HVAC applications.

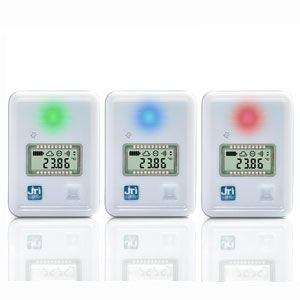

WirelessTemperatureHumiditySensorsLoRaSPYTHlights

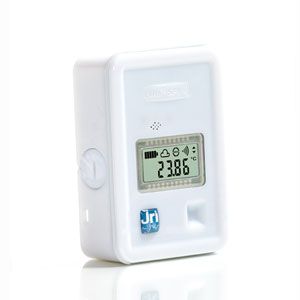

WirelessTemperatureHumiditySensorsLoRaSPYTH3-4

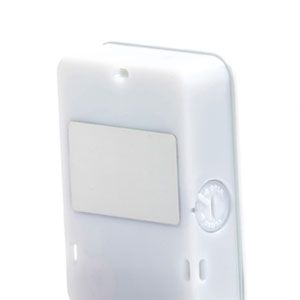

WirelessTemperatureHumiditySensorsLoRaSPYTHback

BENEFITS

  • Long-range LoRaWAN connectivity
  • Easy to use : LoRa SPY T2 is ready to use and has operating and alarms lights
  • LCD display
  • Excellent measurement accuracy
  • Internal probe
  • Fixing eyelets and integrated magnets
  • Replaceable battery





Specifications

  • Measurement range : -30°C to +70°C and 0 to 100%RH
  • Temperature measurement accuracy : ±0.4°C from -20°C to +40°C and ±0.5°C out of this range
  • Hygrometry measurement accuracy (between 15 and 25°C) : ±2%RH from 20% to 80% and ±4%RH from 0% to 20% and 80% to 100%
  • Communication frequency : 868 MHz
  • Memory : 10 000 data points
  • Radio range : Up to 16 km open field range
  • Sensors : Digital
  • Interface : Status LED lights, On/Off touch sensitive button, LCD display
  • Dimensions : 87 x 64 x 25 mm
  • Weight : 100 g
  • Power supply : Replaceable Lithium 3,6v battery
  • Battery lifetime : 2 to 4 years depending on use
  • Identification ring : White
  • Part nr. : 11803 LoRa® SPY TH1 - 11956 LoRa® SPY TH1 SMART
