Wireless Mini Data Loggers Temperature NanoSPYT1 freezer face

Real wireless sensor, the Mini data logger Nano SPY T1 measures and records temperature inside the freezer.

Small and robust, the mini temperature data logger Nano SPY T1 monitors temperature directly from inside your chambers.

It transmits data to a nearby Nano SPY LINK transmission module, by 2.4 GHz radiofrequency communication.
The measurements are then sent automatically to the JRI secure Cloud for hosting, and will be managed on JRI MySirius web application.

If thresholds are exceeded, alerts are transmitted in real time to react immediately.

The calibration can be realized by simple exchange.

The mini data logger Nano SPY T1  can also be used to monitor refrigerators.

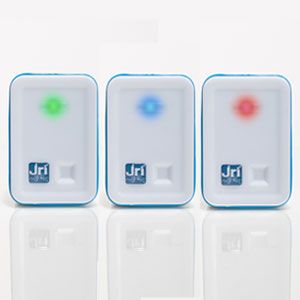

WirelessMiniDataLoggersTemperatureNanoSPYT1-freezerlights

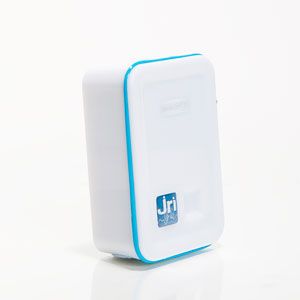

WirelessMiniDataLoggersTemperatureNanoSPYT1-freezer3-4

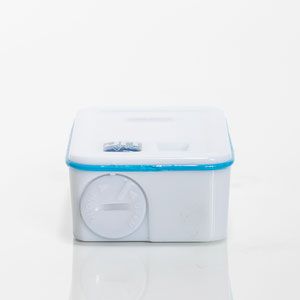

WirelessMiniDataLoggersTemperatureNanoSPYT1-freezerbattery

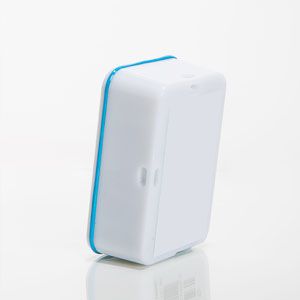

WirelessMiniDataLoggersTemperatureNanoSPYT1-freezerback



BENEFITS

  • Easy to use : the Nano SPY T1 is ready to use and has operating and alarm lights
  • Excellent measurement accuracy
  • Easy to install with fixing eyelets and integrated magnets
  • Replaceable battery
  • Calibration by simple exchange
  • EN 12 830 compliant



Specifications

  • Measurement range : -40°C to +85°C
  • Measurement accuracy : ±0.4°C from -20°C to +40°C and ±0.5°C out of this range
  • Communication frequency : 2,4 GHz
  • Memory : 10 000 data points
  • Sensors : Internal PT100
  • Dimensions : 63 x 42 x 25 mm
  • Weight : 60 g
  • Power supply : Pile Lithium 3,6V replaceable
  • Battery life : 6 years
  • Identification ring : Blue
  • Compliance : EN 12830
  • Part nr : 11567 2E (with battery)  - 11567 2X (without battery)
