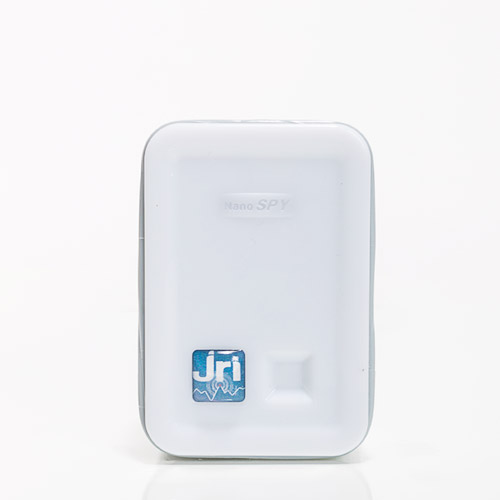

Wireless Mini Data Loggers Temperature NanoSPYT1 ambient face

Real wireless sensor, the Mini data logger Nano SPY T1 measures and records ambient temperature.

Small and robust, the mini temperature data logger Nano SPY T1 monitors temperature directly from inside your chambers.

It transmits data to a nearby Nano SPY LINK transmission module, by 2.4 GHz radiofrequency communication.
The measurements are then sent automatically to the JRI secure Cloud for hosting, and will be managed on JRI MySirius web application.

If thresholds are exceeded, alerts are transmitted in real time to react immediately.

Small and robust, it is designed to monitor ambient temperature.

The calibration can be realized by simple exchange.

For your additional monitoring needs with the hygrometry rate, the Nano SPY TH model allows you to monitor temperature and humidity.

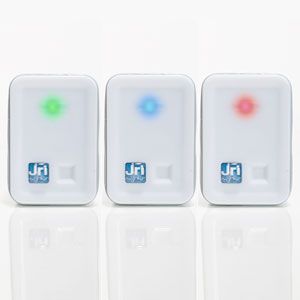

WirelessMiniDataLoggersTemperatureNanoSPYT1-ambientlights

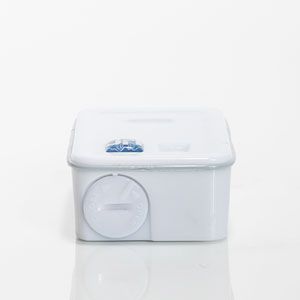

WirelessMiniDataLoggersTemperatureNanoSPYT1-ambientbattery

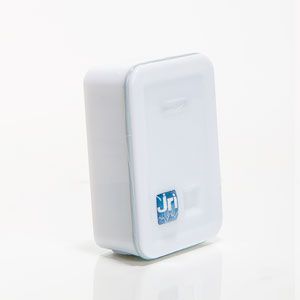

WirelessMiniDataLoggersTemperatureNanoSPYT1-ambient3-4

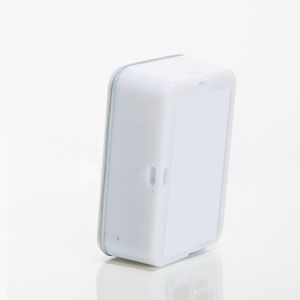

WirelessMiniDataLoggersTemperatureNanoSPYT1-ambiantback



BENEFITS

  • Easy to use : the Nano SPY T1 is ready to use and has operating and alarm lights
  • Excellent measurement accuracy
  • Easy to install with fixing eyelets and integrated magnets
  • Replaceable battery
  • Calibration by simple exchange
  • EN 12830 compliant





Specifications

  • Measurement range : -40°C to +85°C
  • Temperature measurement accuracy : ±0.4°C from -20°C to +40°C and ±0.5°C out of this range
  • Communication frequency : 2,4 GHz
  • Memory : 10 000 data points
  • Sensors : Internal PT100
  • Dimensions : 63 x 42 x 25 mm
  • Weight : 60 g
  • Power supply : Pile Lithium 3,6V replaceable
  • Battery life : 6 years
  • Identification ring : Grey
  • Compliance : EN 12830
  • Part nr : 11567 2E (with battery)  - 11567 2X (without battery)
