Wireless Mini Data Loggers Temperature NanoSPYT3 face

The mini temperature data logger Nano SPY T3 measures and records high temperature with its external probe.

Designed to monitor thermo-controlled chambers, the mini data logger Nano SPY T2 transmits data to a nearby LINK module, by 2.4 GHz radiofrequency communication.
The measurements are then sent automatically to the JRI secure Cloud for hosting, and will be managed on JRI MySirius web application.

If thresholds are exceeded, alerts are transmitted in real time to react immediately.

It can be fixed thanks to its magnet outside the equipment.

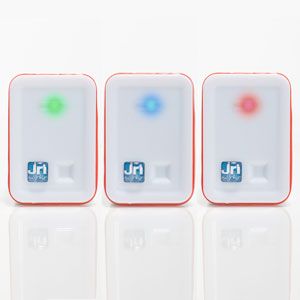

WirelessMiniDataLoggersLowTemperatureNanoSPYT3lights

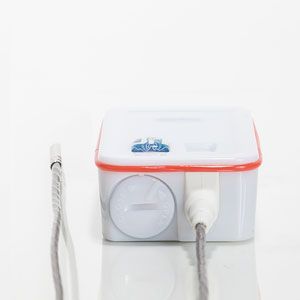

WirelessMiniDataLoggersTemperatureNanoSPYT3battery

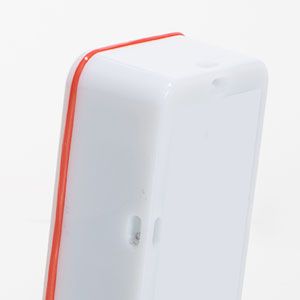

WirelessMiniDataLoggersTemperatureNanoSPYT3back



BENEFITS

  • Easy to use : the Nano SPY T3 is ready to use and has operating and alarm lights
  • Excellent measurement accuracy
  • Easy to install with fixing eyelets and integrated magnets
  • Replaceable battery and non disconnectable external probe
  • EN 12830 compliant



Specifications



  • Measurement range : 0°C to +200°C
  • Temperature measurement accuracy : ±0.3°C from 0°C to +100°C and ±0.5°C out of this range
  • Communication frequency : 2,4 GHz
  • Memory : 10 000 data points
  • Sensors : External PT100 probe - Ø2,9x25mm
  • Dimensions : 63 x 42 x 25 mm
  • Weight : 60 g
  • Power supply : Lithium battery 3,6V replaceable
  • Battery life : 2 to 4 years depending on use
  • Identification ring : Red
  • Compliance : EN 12830
  • Part nr : 11693 Nano SPY T3 with 3m cable
